Spitzlift has developed four different mounting systems to accommodate the variety of service body heights, upfit designs, and applicaitons.

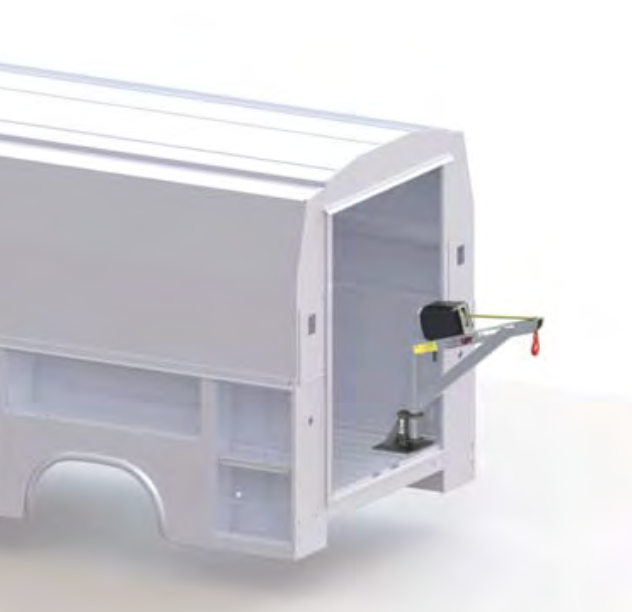

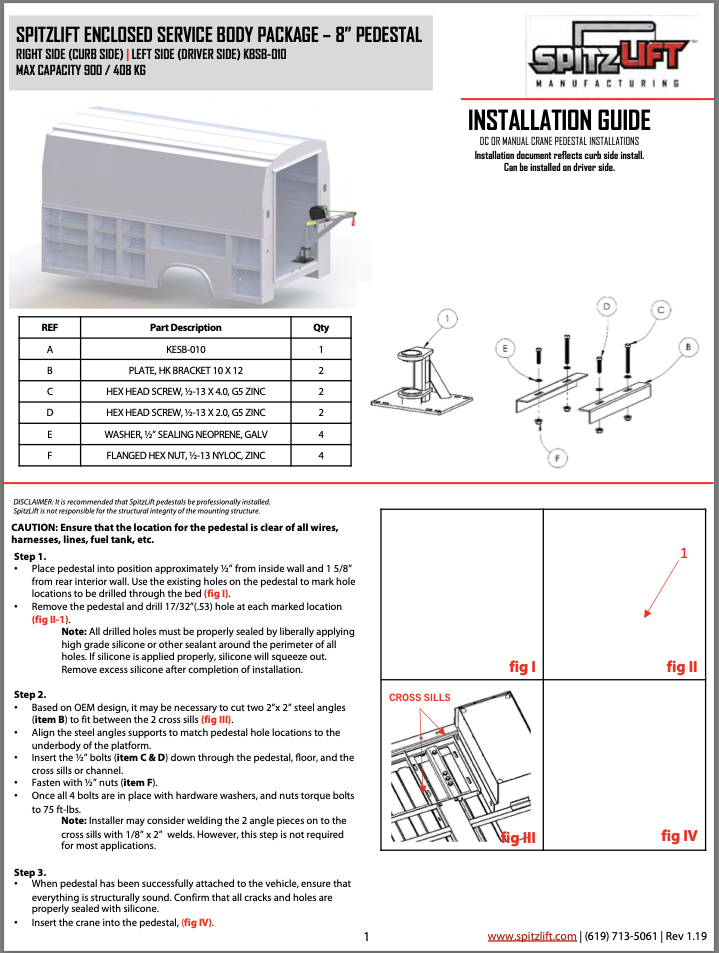

Low/Medium Roof
Standard DC Powered Lift
Details
Low / Medium
(Door Opening: 49-57 inches high)
3 ft. standard crane:
Load capacity – 900 lbs.
Crane weight – 36 lbs.
Mount options: 8-inch permanent mount or 16-inch removable mount
*Fully installed, adds less than 100 lbs. of payload to the vehicle
Made and Assembled in the USA.
Includes:
12V DC Crane with Pendant, DC Connect & Wiring Harness LTD-324

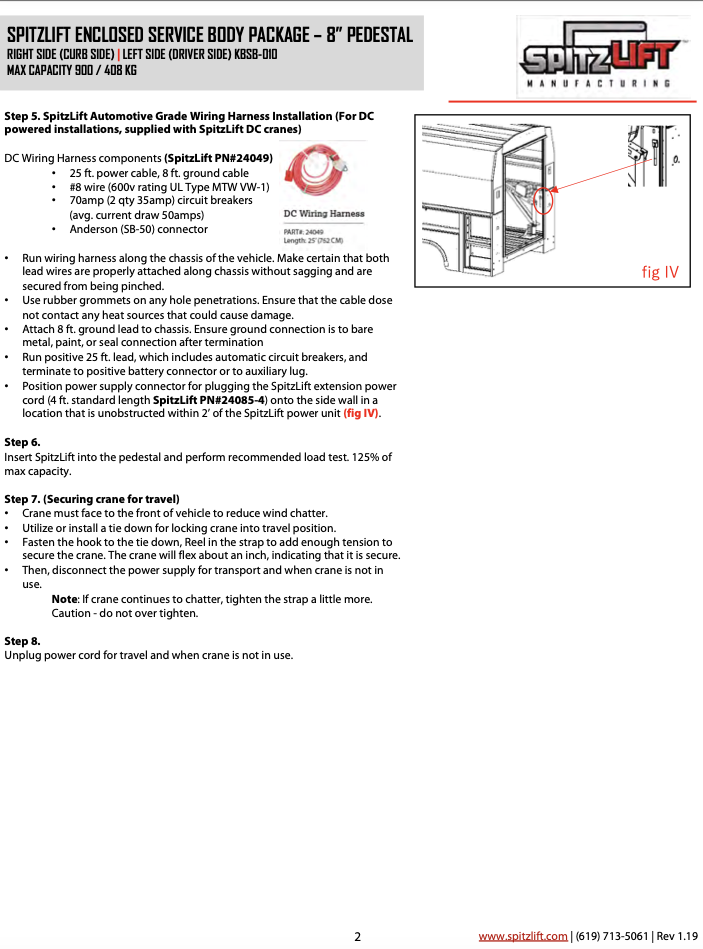

Pedestal KESB-010 with Installation Reinforcement Kit
Product Specifications:
Max Lifting Capacity: 900 lbs (408.2 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel
VIEW SPEC SHEET
Low/Medium Roof
Fold Down DC Powered Lift
Details
Low / Medium
(Door Opening: 49-57 inches high)
3 ft. standard crane:
Load capacity – 900 lbs.
Crane weight – 36 lbs.
Mount options: 8-inch permanent mount or 16-inch removable mount
*Fully installed, adds less than 100 lbs. of payload to the vehicle.
Made and Assembled in the USA.
Includes:
12V DC Crane with Pendant, DC Connect & Wiring Harness LTD-324,
Post Mast KPHBS-016, Pedestal KBP-1012 with Installation Reinforcement Kit KBP-1012H
Product Specifications:
Max Lifting Capacity: 900 lbs (408.2 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel
VIEW SPEC SHEET

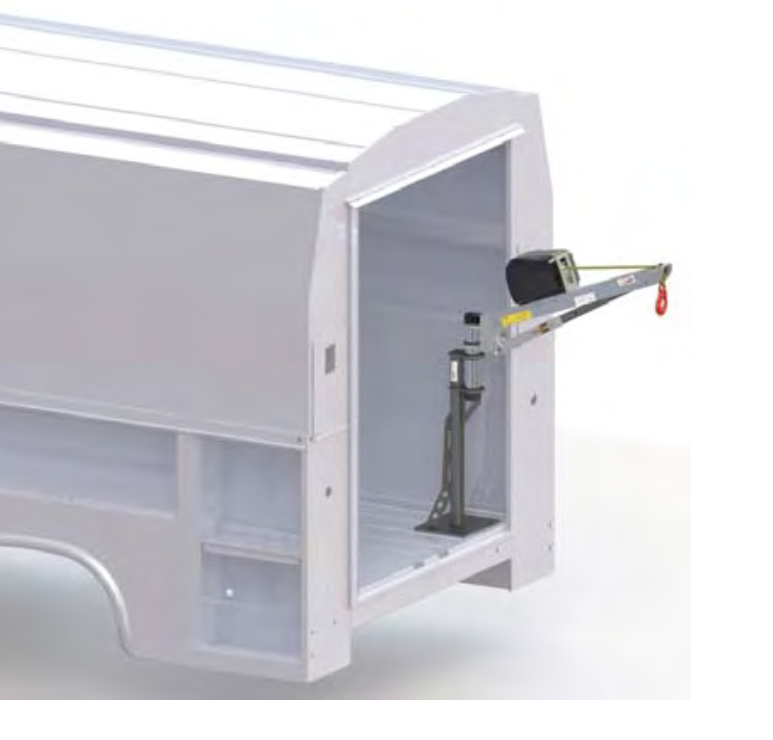

Tall Roof
Standard DC Powered Lift
Details
Tall
(Door Opening: 72-75 inches high)
3 ft. standard crane:
Load capacity – 900 lbs.
Crane weight – 36 lbs.
Mount options: 26-inch removable mount (no permanent mount option available)
*Fully installed, adds less than 100 lbs. of payload to the vehicle.
Made and Assembled in the USA.
Includes:
12V DC Crane with Pendant, DC Connect & Wiring Harness LTD-324,
Post Mast KPHBS-026, Pedestal KBP-1012 with Installation Reinforcement Kit KBP-1012H
Product Specifications:
Max Lifting Capacity: 900 lbs (408.2 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel
VIEW SPEC SHEET

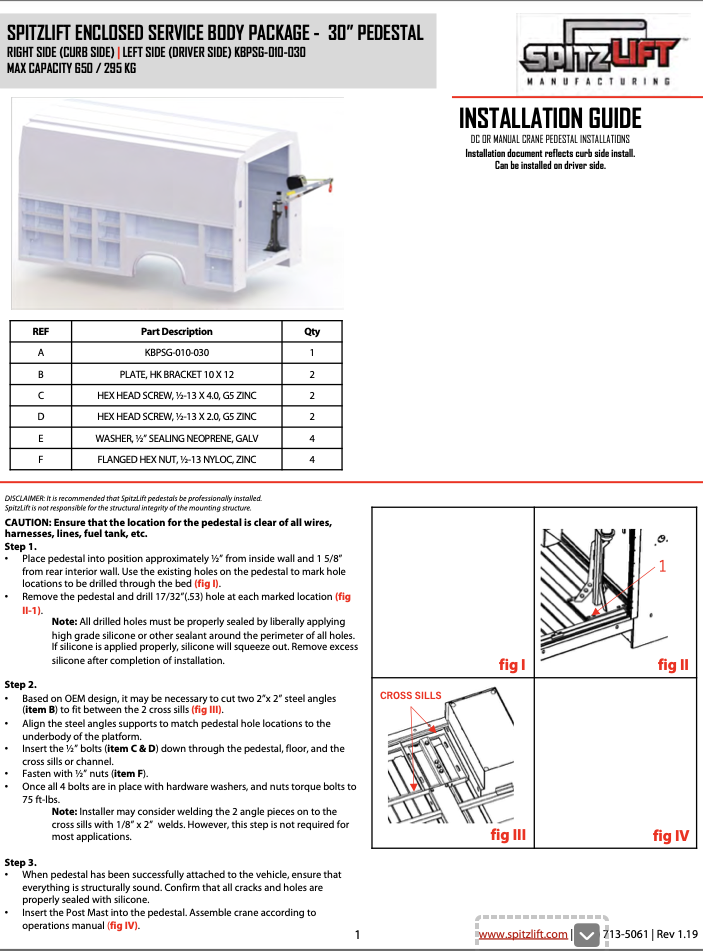

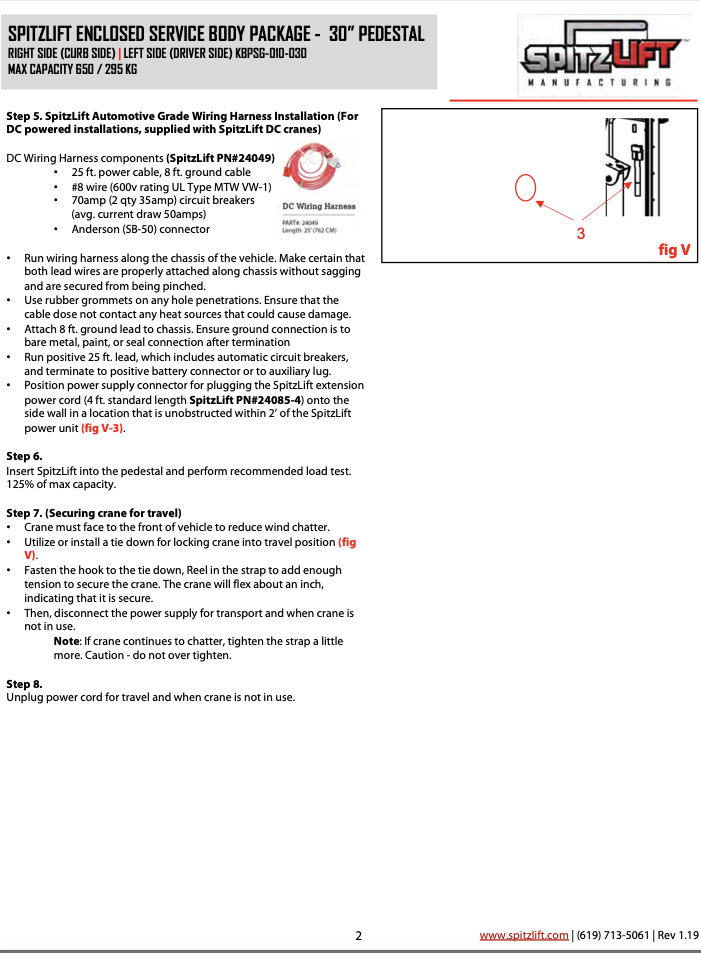

Tall Roof
Fold-Down DC Powered Lift
Details
Tall
(Door Opening: 72-75 inches high)
3 ft. fold-down crane:
Load capacity – 650 lbs.
Crane weight – 45 lbs.
Mount option: 37-inch removable mount (no permanent mount option available)
*Fully installed, adds less than 100 lbs. of payload to the vehicle.
Made and Assembled in the USA.
Includes:
12V DC Fold-Down Crane with Pendant, DC Connect & Wiring Harness LTD-3QRT, and13″ Pivot Tube Z-LTPT13
Pedestal KBPSG-010-030 with Installation Reinforcement Kit KBP-1012H
Product Specifications:
Max Lifting Capacity: 900 lbs (408.2 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel
VIEW SPEC SHEET
Call to speak with a SpitzLift Application's expert or get a quote.

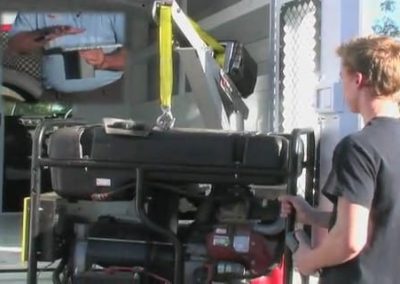

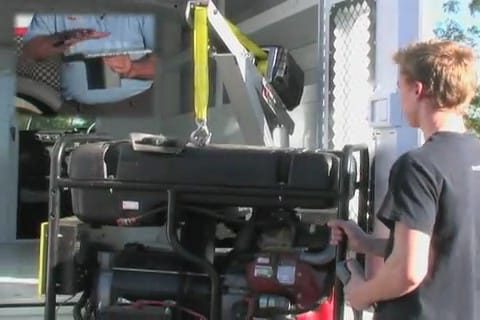

ENCLOSED SERVICE BODIES IMAGE GALLERY
SPITZLIFT FEATURES
Light Weight
Crane Capacity
Vehicle Weight Reduction
Versatile
Increase Efficiency
Also allows for effective deployment of manpower.
