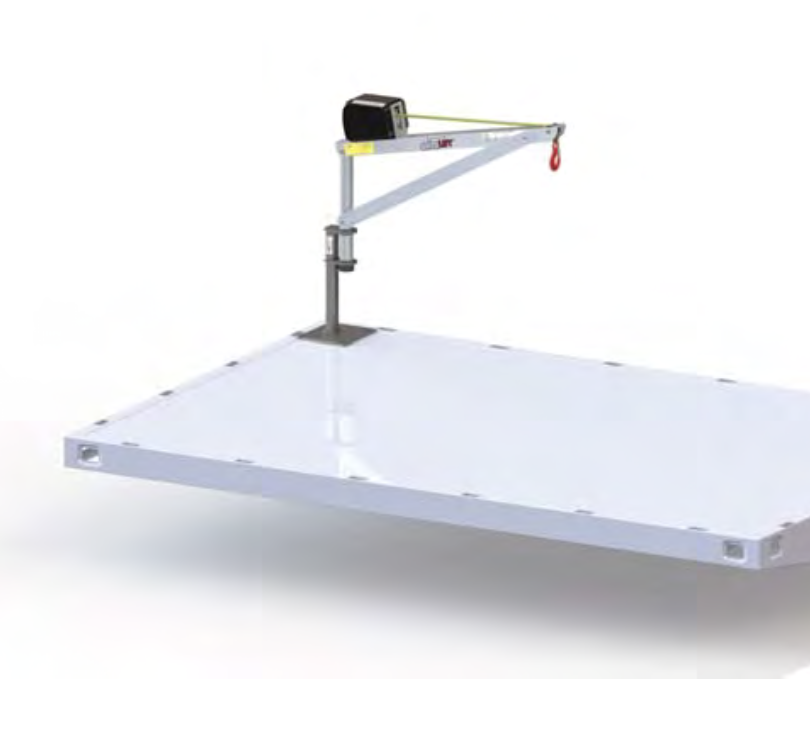

The design of the SpitzLift Platform Truck pedestal can be mounted anywhere around the perimeter of the truck bed. Since the Spitzlift is lightweight, under 40 pounds, it is also portable. Installing multiple mounting pedestals around the bed of the platform truck allows for easier loading and unloading.

DC Powered Spitzlift-

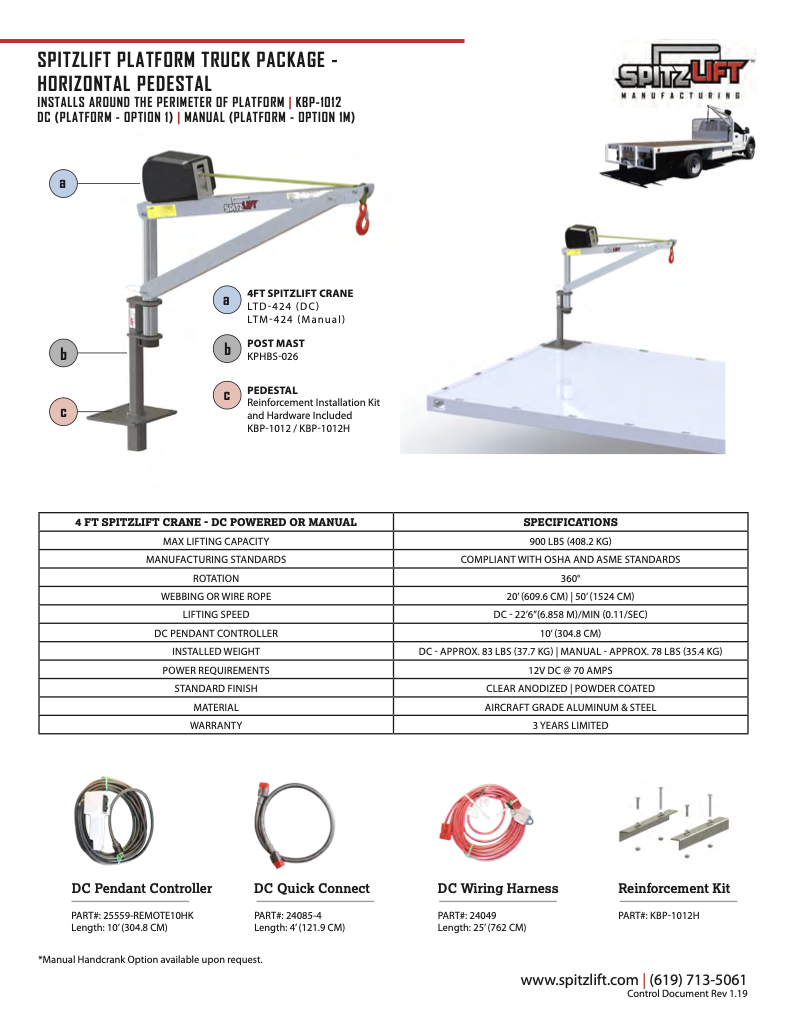

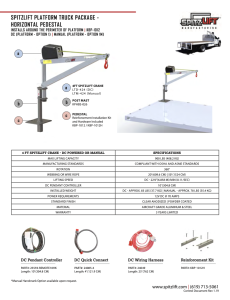

Surface Plate Pedestal

Product Descriptions:

Designed and engineered to be payload efficient. Spitzlift DC Electric crane weighs less than 40 lbs with a payload capacity of 900 lbs. Pedestals can be installed on the left or right side of the platform truck bed. SpitzLift cranes meet compliance requirements, are load tested, and ship pre-assembled with load-test certificates.  Operator certificate is not required to operate an electric Spitzlift Crane.

Made and Assembled in the USA.

Includes:

12V DC Crane with Pendant, DC Connect & Wiring Harness LTD-424, Post Mast KPHBS-026, Pedestal KBP-1012 with Installation Reinforcement Kit KBP-1012H

Product Specifications:

Max Lifting Capacity: 900 lbs (408.2 kg)

Install Weight: 83 lbs (37.6 kg)

Safety release auxiliary handle

Circuit breaker system for overload protection

Disc brake dual load control system

Rotation: 360° Continuous

Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)

Materials: Aircraft Grade Aluminium & Steel



VIEW SPEC SHEET

Manual Spitzlift-
Surface Plate Pedestal

Product Descriptions:

Designed and engineered to be payload efficient. Spitzlift Manual crane weighs less than 35 lbs with a payload capacity of 900 lbs. Pedestals can be installed on the left or right side of the truck. SpitzLift cranes are load tested and meet compliance requirements.

Made and Assembled in the USA.

Includes:

Manual Crane LTM-424, Post Mast KPHBS-026, Pedestal KBP-1012 with Installation Reinforcement Kit KBP-1012H

Product Specifications:

Max Lifting Capacity: 900 lbs (408.2 kg)

Manual Crane: Load Control Brake

Rotation: 360° Continuous

Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)

Installed Weight: Approx  78 lbs (35.3 kg)

Materials: Aircraft Grade Aluminium & Steel

VIEW SPEC SHEET

DC Powered SpitzLift-
Vertical Pedestal

Product Descriptions:

Designed and engineered to be payload efficient. Spitzlift DC Electric crane weighs less than 40 lbs with a payload capacity of 900 lbs. Pedestals can be installed on the left or right side of the platform truck bed. SpitzLift cranes meet compliance requirements, are load tested, and ship pre-assembled with load-test certificates.  Operator certificate is not required to operate an electric Spitzlift Crane.

Made and Assembled in the USA.

Includes:

12V DC Crane with Pendant, DC Connect & Wiring Harness LTD-424, Post Mast KPHBS-026, Pedestal KBOU-001

Product Specifications:

Max Lifting Capacity: 900 lbs (408.2 kg)

Install Weight: 52 lbs (23.5 kg)

Safety release auxiliary handle

Circuit breaker system for overload protection

Disc brake dual load control system

Rotation: 360° Continuous

Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)

Materials: Aircraft Grade Aluminium & Steel



VIEW SPEC SHEET

Manual SpitzLift-
Vertical  Pedestal

Product Descriptions:

Designed and engineered to be payload efficient. Spitzlift Manual crane weighs less than 35 lbs with a payload capacity of 900 lbs. Pedestals can be installed on the left or right side of the truck. SpitzLift cranes are load tested and meet compliance requirements.

Made and Assembled in the USA.

Includes:

Manual Crane LTM-424, Post Mast KPHBS-026, Pedestal KBOU-001

Product Specifications:

Max Lifting Capacity: 900 lbs (408.2 kg)

Manual Crane: Load Control Brake

Rotation: 360° Continuous

Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)

Installed Weight: Approx  48 lbs (21.7 kg)

Materials: Aircraft Grade Aluminium & Steel

VIEW SPEC SHEET

Call to speak with a SpitzLift Application's expert or get a quote.

PLATFORM TRUCKS IMAGE GALLERY

SPITZLIFT FEATURES

Light Weight

SpitzLift cranes are made of aircraft grade aluminum and have an average weight of 40lbs.

Crane Capacity

SpitzLift cranes have a robust load capacity of up to 900 lbs. Custom projects can increase the load capacity to 1200 lbs.

Vehicle Weight Reduction

Fully installed, SpitzLift cranes are less than 100 lbs. payload to the vehicle.
+

Versatile

The modular design of Spitzlift cranes makes it possible to move from vehicle to vehicle, pedestal to pedestal, and application to application.

Increase Efficiency

SpitzLift cranes have a setup time of under 2 minutes.
Also allows for effective deployment of manpower.

Compact Storage

SpitzLift cranes fold down easily for compact storage.

Satisfaction Guaranteed

SAFETY AND QUALITY IS OUR UTMOST CONCERN

Leaders in our industry

Components are manufactured according to ISO compliance

All products made and assembled in the USA

Meets ASME, OSHA, DEFSTAN, CE, and AS standards

Every crane is tested and comes with a load test certificate

3-year standard warranty on most products
