SpitzLift’s Aluminum Van Crane and mounting systems are designed and engineered to be the ideal lifting solution for work vans. Choose from the van types below to find the right upfit below. Spitzlift is the perfect van partner.

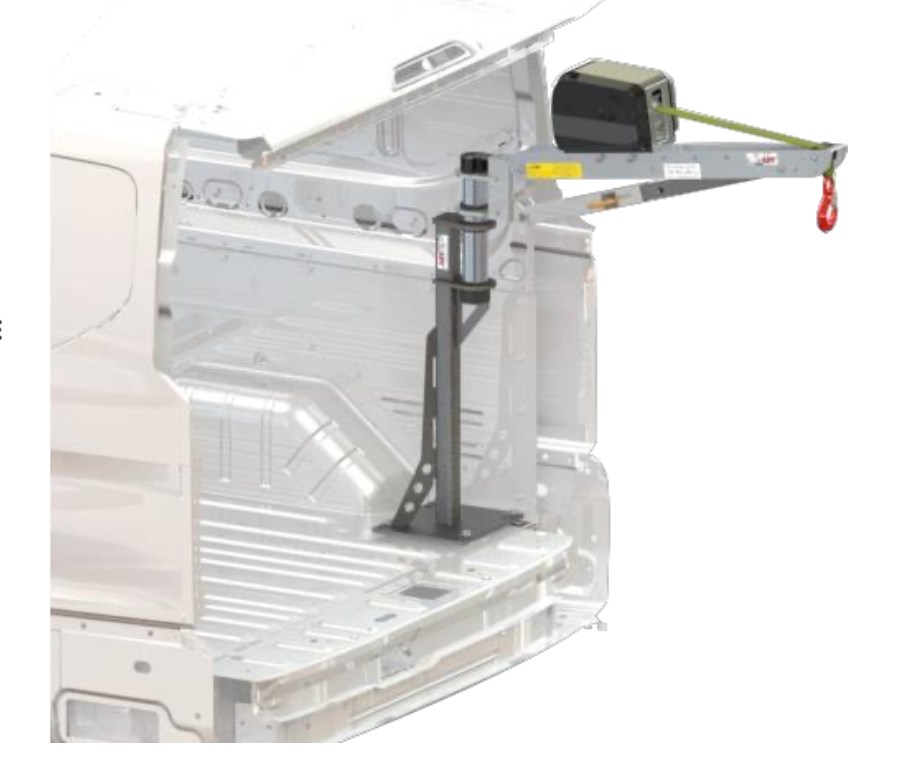

Ford Van
Options
Rear Door Fold Down Crane
Details:
Installs on either Left or Right Side Install Weight: Approx. 91 lbs Load Capacity: 650 lbs
Includes:
12V DC Fold-Down Crane with Pendant, DC Connect & Wiring Harness LTD-3QRT, 13″ Pivot Tube Z-LTPT13 (taller options available), Pedestal KBPSG-010-030 with Installation Reinforcement Kit KBP-1012-FTH
Product Specifications:
Max Lifting Capacity: 650 lbs (294.8 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel
VIEW SPEC SHEET

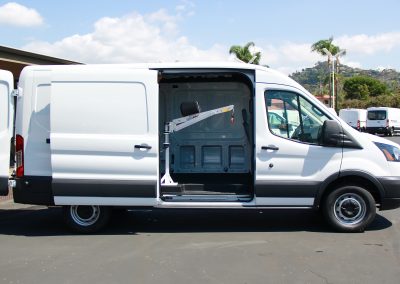

Side Door Fold Down Crane
Details:
Crane installed on the left side of the side door. In this location, the crane can rotate at 270° with a max weight capacity of 650 lbs. Crane folds down to allow for more workspace without removing the crane.
Includes:
12V DC Fold-Down Crane with Pendant, DC Connect & Wiring Harness LTD-3QRT, 13″ Pivot Tube Z-LTPT13 (taller options available), Pedestal KBPSG-010-030 with Installation Reinforcement Kit KBP-1012-FTH-SD
Product Specifications:
Max Lifting Capacity: 650 lbs (294.8 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel
Side Door Standard Crane
Details:
Crane installed on the left side of the side door. In this location, the crane can rotate at 270° with a max weight capacity of 900 lbs.
Includes:
12V DC Crane with Pendant, DC Connect & Wiring Harness LTD-324
Pedestal KBPSG-010-026 with Installation Reinforcement Kit KBP-1012-FTH-SD
Product Specifications:
Max Lifting Capacity: 900 lbs (408.2 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel

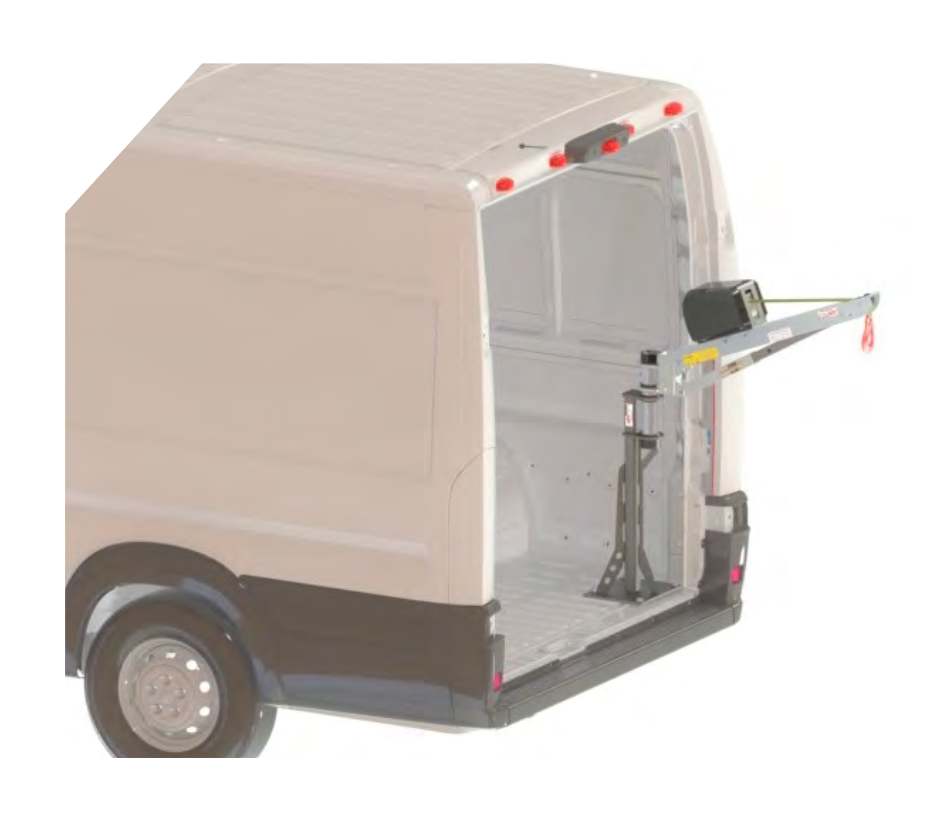

Dodge Van
Options
Rear Door Fold Down Crane
Details:
Installs on either Left or Right Side Install Weight: Approx. 91 lbs Load Capacity: 650 lbs
Includes:
12V DC Fold-Down Crane with Pendant, DC Connect & Wiring Harness LTD-3QRT, 13″ Pivot Tube Z-LTPT13 (taller options available), Pedestal KBPSG-010-030 with Installation Reinforcement Kit KBP-1012-DPH
Product Specifications:
Max Lifting Capacity: 650 lbs (294.8 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel
VIEW SPEC SHEET
Side Door Fold Down Crane
Details:
Crane installed on the left side of the side door. In this location, the crane can rotate at 270° with a max weight capacity of 650 lbs. Crane folds down to allow for more workspace without removing the crane.
Includes:
12V DC Fold-Down Crane with Pendant, DC Connect & Wiring Harness LTD-3QRT, 13″ Pivot Tube Z-LTPT13 (taller options available), Pedestal KBPSG-010-030 with Installation Reinforcement Kit KBP-1012-FTH-SD
Product Specifications:
Max Lifting Capacity: 650 lbs (294.8 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel
Side Door Standard Crane
Crane installed on the left side of the side door. In this location, the crane can rotate at 270° with a max weight capacity of 900 lbs.
Includes:
12V DC Crane with Pendant, DC Connect & Wiring Harness LTD-324
Pedestal KBPSG-010-026 with Installation Reinforcement Kit KBP-1012-DPH-SD
Product Specifications:
Max Lifting Capacity: 900 lbs (408.2 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel

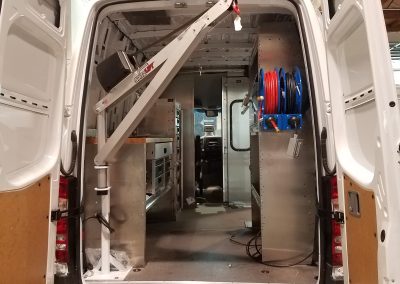

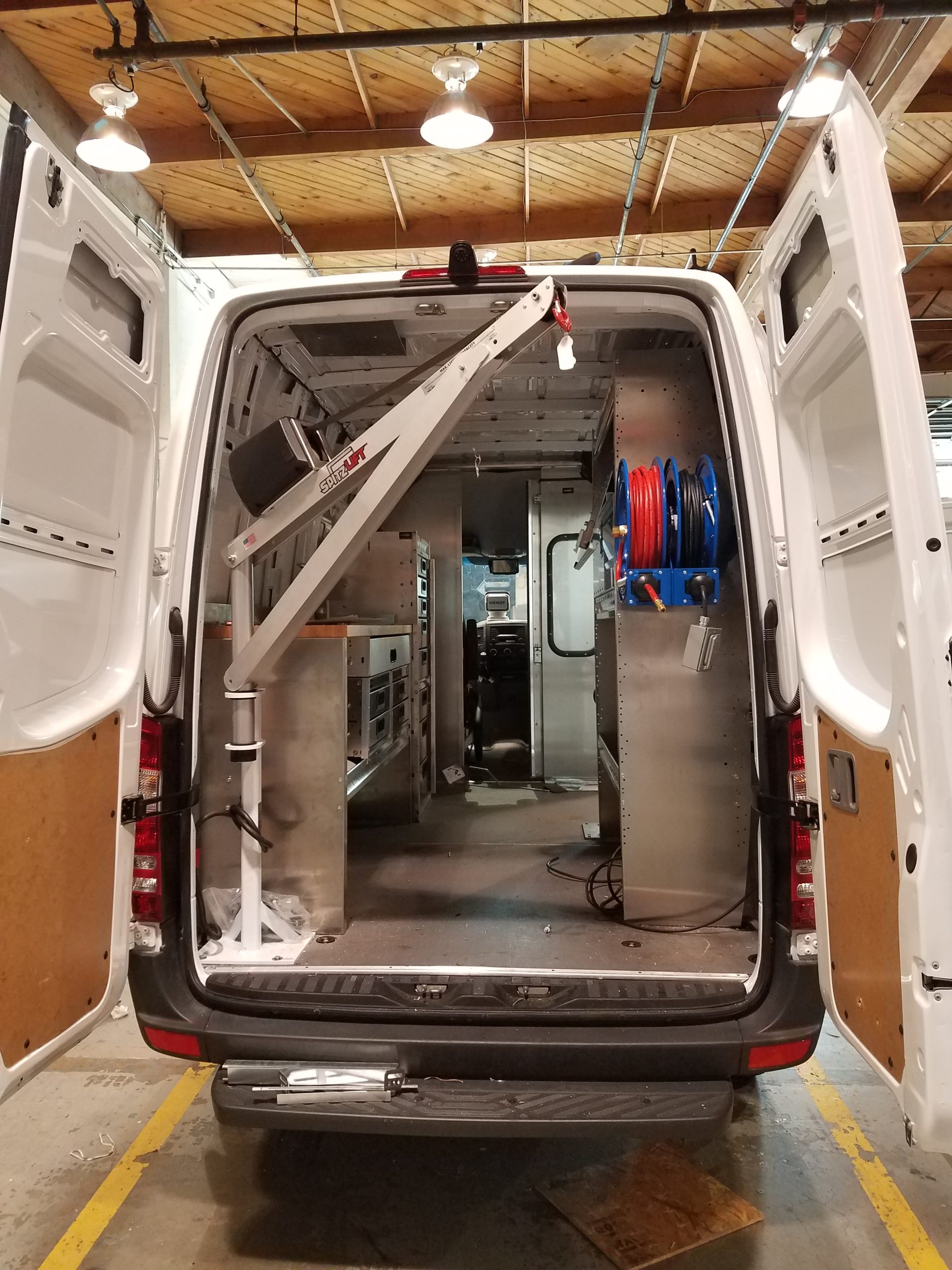

Mercedes Van
Options
Rear Door Fold Down Crane
Details:
Installs on either Left or Right Side Install Weight: Approx. 91 lbs Load Capacity: 650 lbs
Includes:
12V DC Fold-Down Crane with Pendant, DC Connect & Wiring Harness LTD-3QRT, 13″ Pivot Tube Z-LTPT13 (taller options available), and Pedestal KBPSG-010-030, Reinforcement Kit Not Available
Product Specifications:
Max Lifting Capacity: 650 lbs (294.8 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel
Side Door Fold Down Crane
Details:
Crane installed on the left side of the side door. In this location, the crane can rotate at 270° with a max weight capacity of 650 lbs. Crane folds down to allow for more workspace without removing the crane.
Includes:
12V DC Fold-Down Crane with Pendant, DC Connect & Wiring Harness LTD-3QRT, 13″ Pivot Tube Z-LTPT13 (taller options available), Pedestal KBPSG-010-030, Reinforcement Kit Not Available
Product Specifications:
Max Lifting Capacity: 650 lbs (294.8 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel
Side Door Standard Crane
Details:
Crane installed on the left side of the side door. In this location, the crane can rotate at 270° with a max weight capacity of 900 lbs.
Includes:
12V DC Crane with Pendant, DC Connect & Wiring Harness LTD-324, Pedestal KBPSG-010-026, Reinforcement Kit Not Available
Product Specifications:
Max Lifting Capacity: 900 lbs (408.2 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel
Additional Van
Options

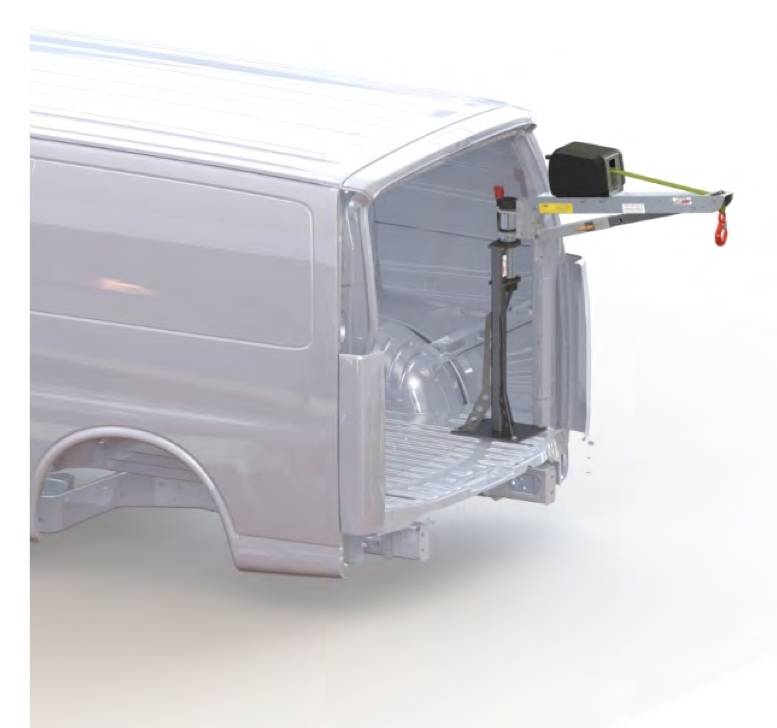

Rear Door Fold Down Crane
Van Types:
Nissan, GM & Chevrolet
Details:
Installs on either Left or Right Side Install Weight: Approx. 76 lbs Load Capacity: 650 lbs
Includes:
12V DC Fold-Down Crane with Pendant, DC Connect & Wiring Harness LTD-3QRT, 13″ Pivot Tube Z-LTPT13 (taller options available), Pedestal KBPSG-010-030, Reinforcement Kit Not Available
Product Specifications:
Max Lifting Capacity: 650 lbs (294.8 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel
Side Door Fold Down Crane
Van Types:
Nissan, GM & Chevrolet
Details:
Crane installed on the left side of the side door. In this location, the crane can rotate at 270° with a max weight capacity of 650 lbs. Crane folds down to allow for more workspace without removing the crane.
Includes:
12V DC Fold-Down Crane with Pendant, DC Connect & Wiring Harness LTD-3QRT, 13″ Pivot Tube Z-LTPT13 (taller options available), Pedestal KBPSG-010-030, Reinforcement Kit Not Available
Product Specifications:
Max Lifting Capacity: 650 lbs (294.8 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel
Side Door Standard Crane
Van Types:
Nissan, GM & Chevrolet
Details:
Crane installed on the left side of the side door. In this location, the crane can rotate at 270° with a max weight capacity of 900 lbs.
Includes:
12V DC Crane with Pendant, DC Connect & Wiring Harness LTD-324, Pedestal KBPSG-010-026, Reinforcement Kit Not Available
Product Specifications:
Max Lifting Capacity: 900 lbs (408.2 kg)
Rotation: 360° Continuous
Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)
Installed Weight: Approx. 65 lbs (29.5 kg)
Materials: Aircraft Grade Aluminum & Steel
Call to speak with a SpitzLift Application's expert or get a quote.

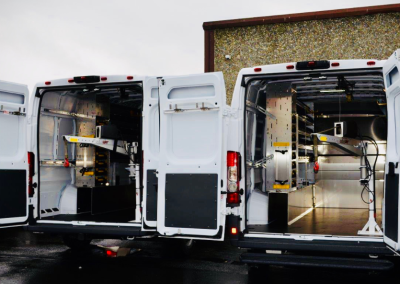

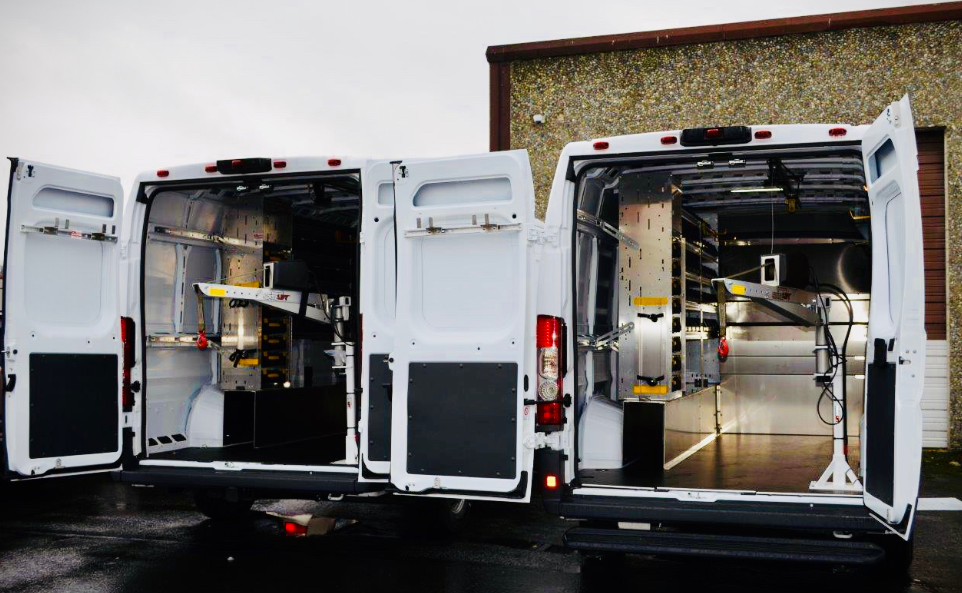

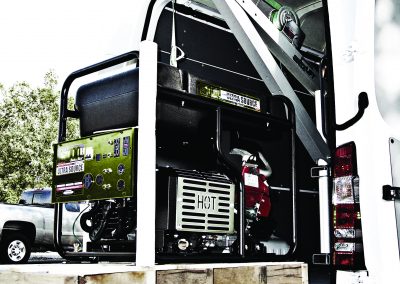

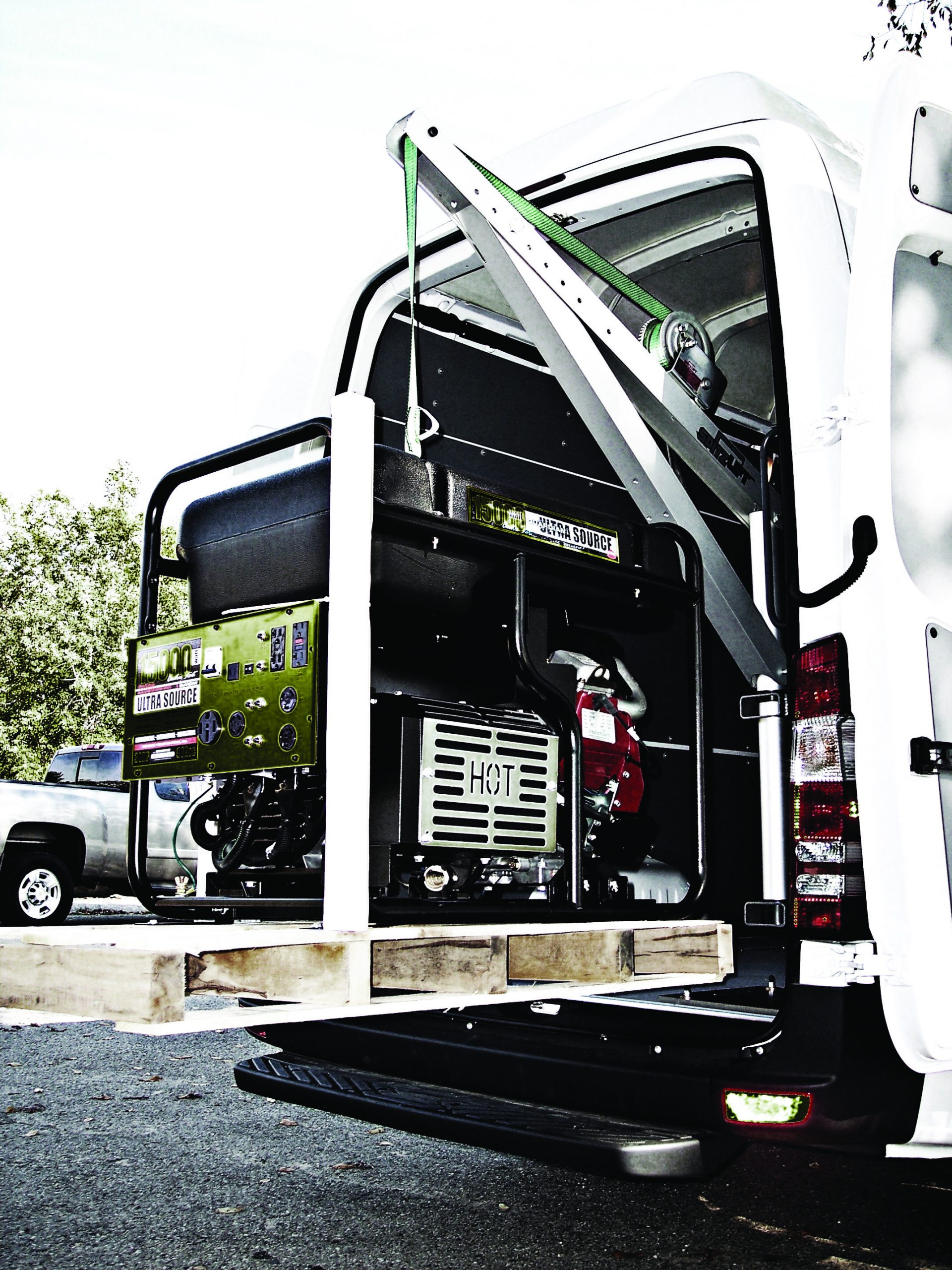

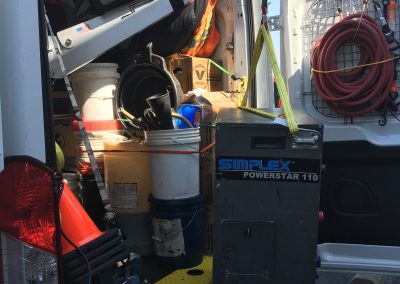

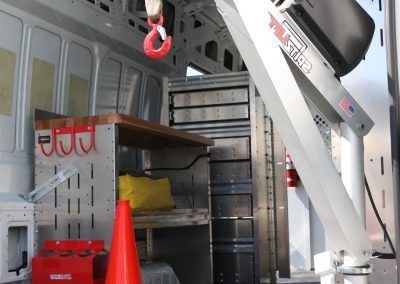

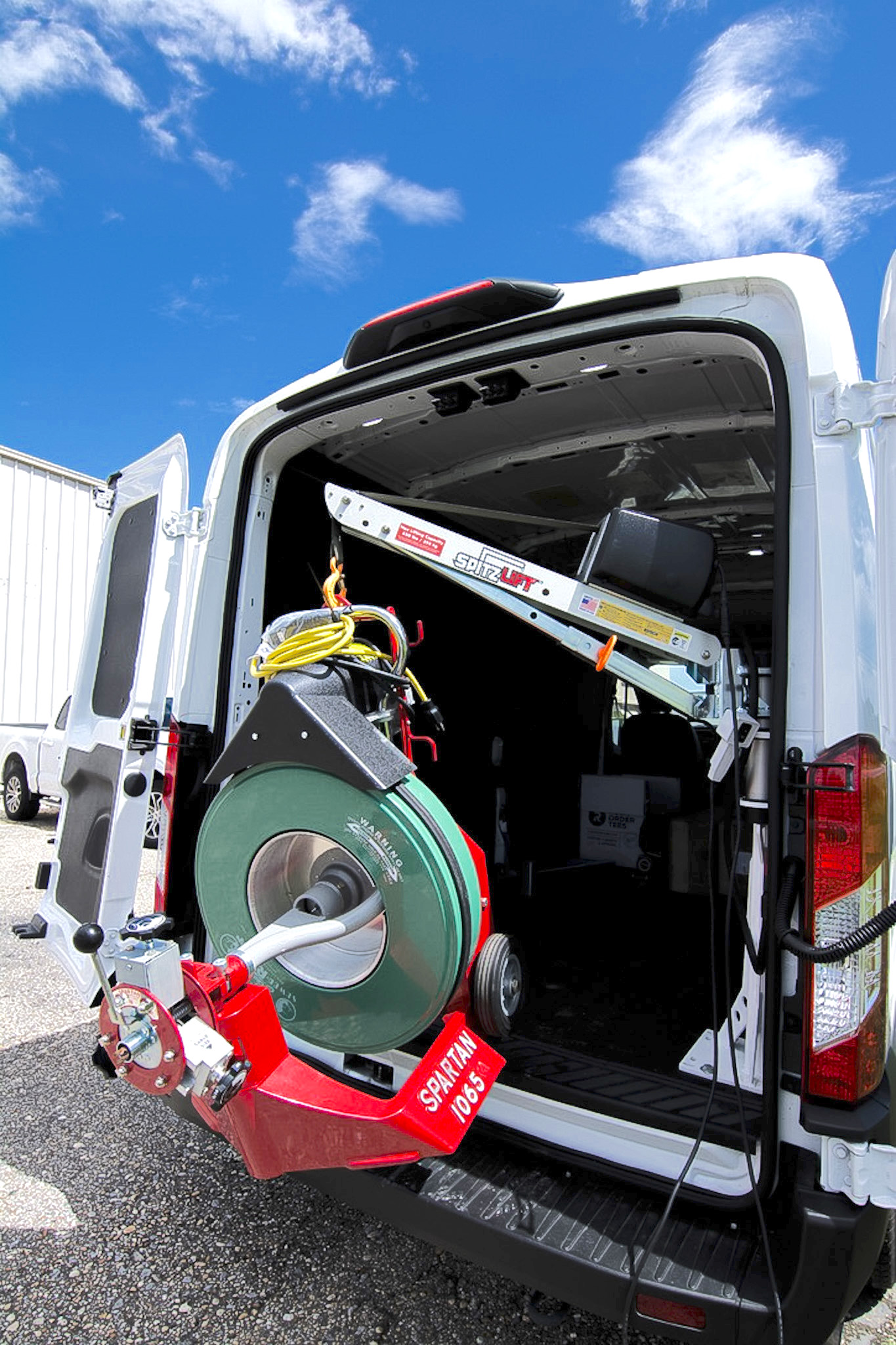

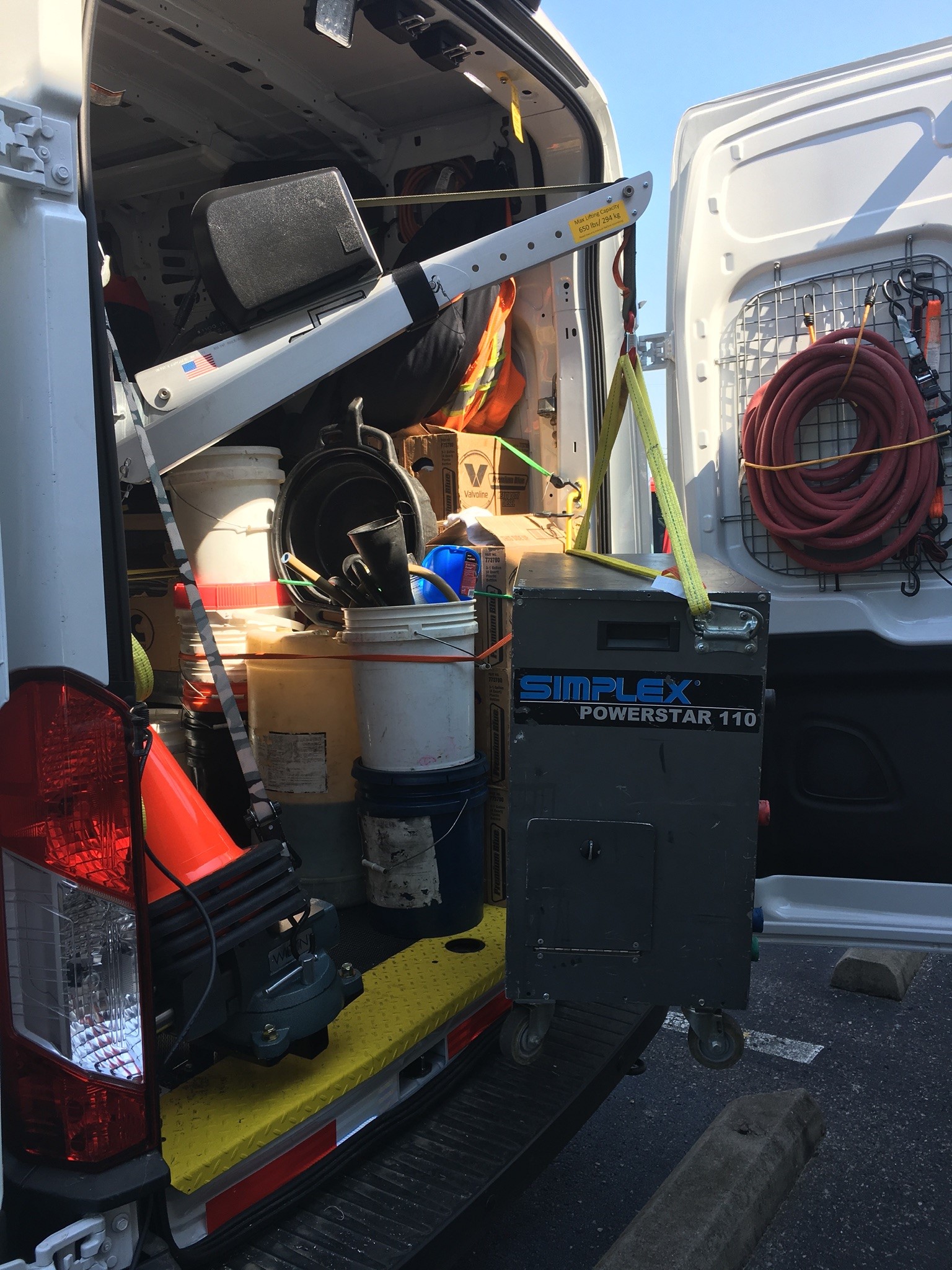

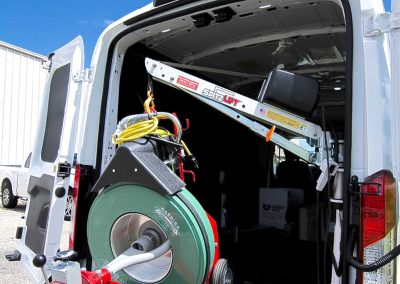

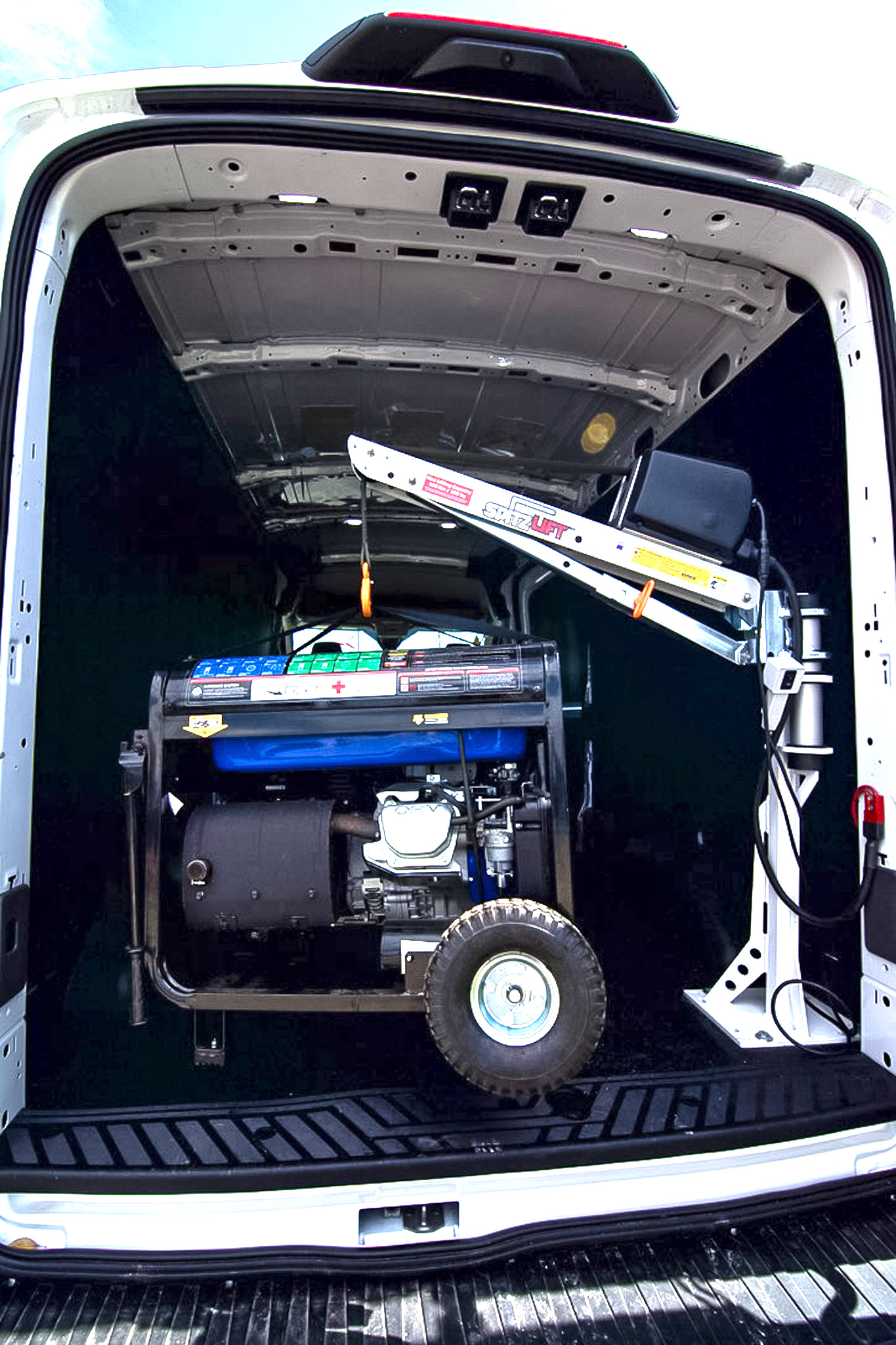

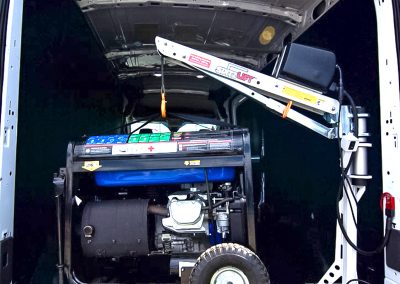

VANS IMAGE GALLERY
SPITZLIFT FEATURES
Light Weight
SpitzLift cranes are made of aircraft grade aluminum and have an average weight of 40lbs.
Crane Capacity
SpitzLift cranes have a robust load capacity of up to 900 lbs. Custom projects can increase the load capacity to 1200 lbs.
Vehicle Weight Reduction
Fully installed, SpitzLift cranes are less than 100 lbs. payload to the vehicle.
Versatile
Increase Efficiency
Also allows for effective deployment of manpower.
Compact Storage
SpitzLift cranes fold down easily for compact storage.
Satisfaction Guaranteed
Leaders in Industry
Components are manufactured according to ISO compliance
All products made and assembled in the USA
Meets ASME, OSHA, DEFSTAN, CE, and AS standards
Every crane is tested and comes with a load test certificate
3-year standard warranty on most products
