We offer 4 different mounting systems for service bodies to accommodate a variety of upfit designs and lifting applications.

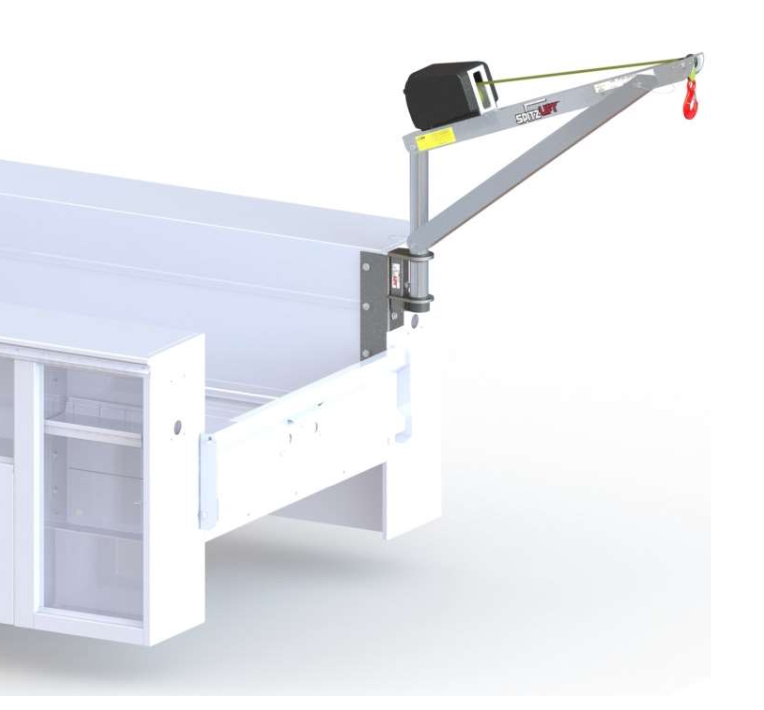

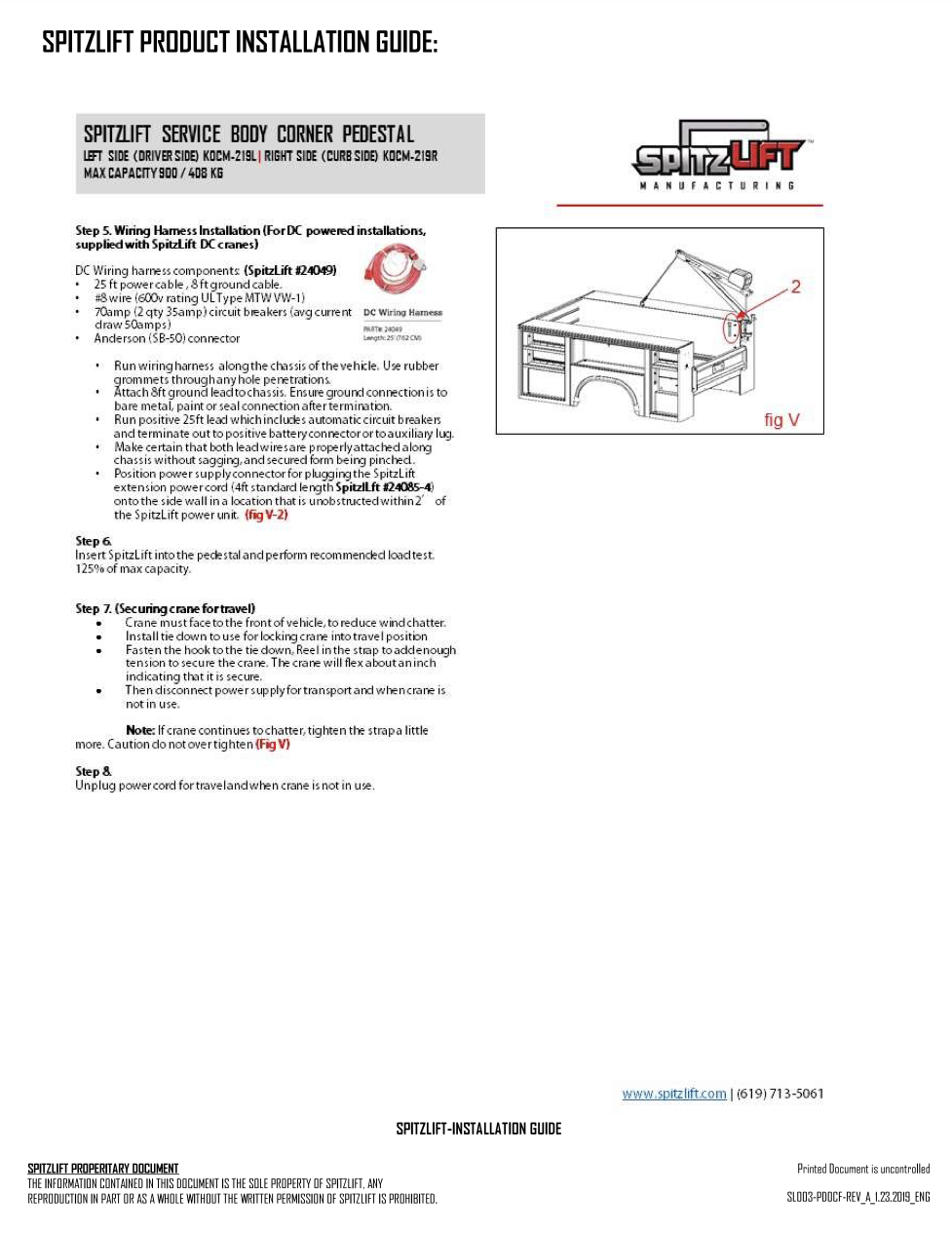

Corner Mount –
DC Powered Lift

Product Details:

This mounting system is designed and engineered for service trucks with specifications that include flip tops and/or ladder racks.

Includes:

LTD-424- 12V DC Crane with Pendant, DC Connect & Wiring Harness. (Manual Crane Available)

Pedestal KOCM-219(L/R)- with Installation Reinforcement Kit.

Product Specifications:

Max Lifting Capacity: 900 lbs (408.2 kg)

Rotation: 360° Continuous

Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)

Installed Weight: Approx. 65 lbs (29.5 kg)

Materials: Aircraft Grade Aluminum & Steel

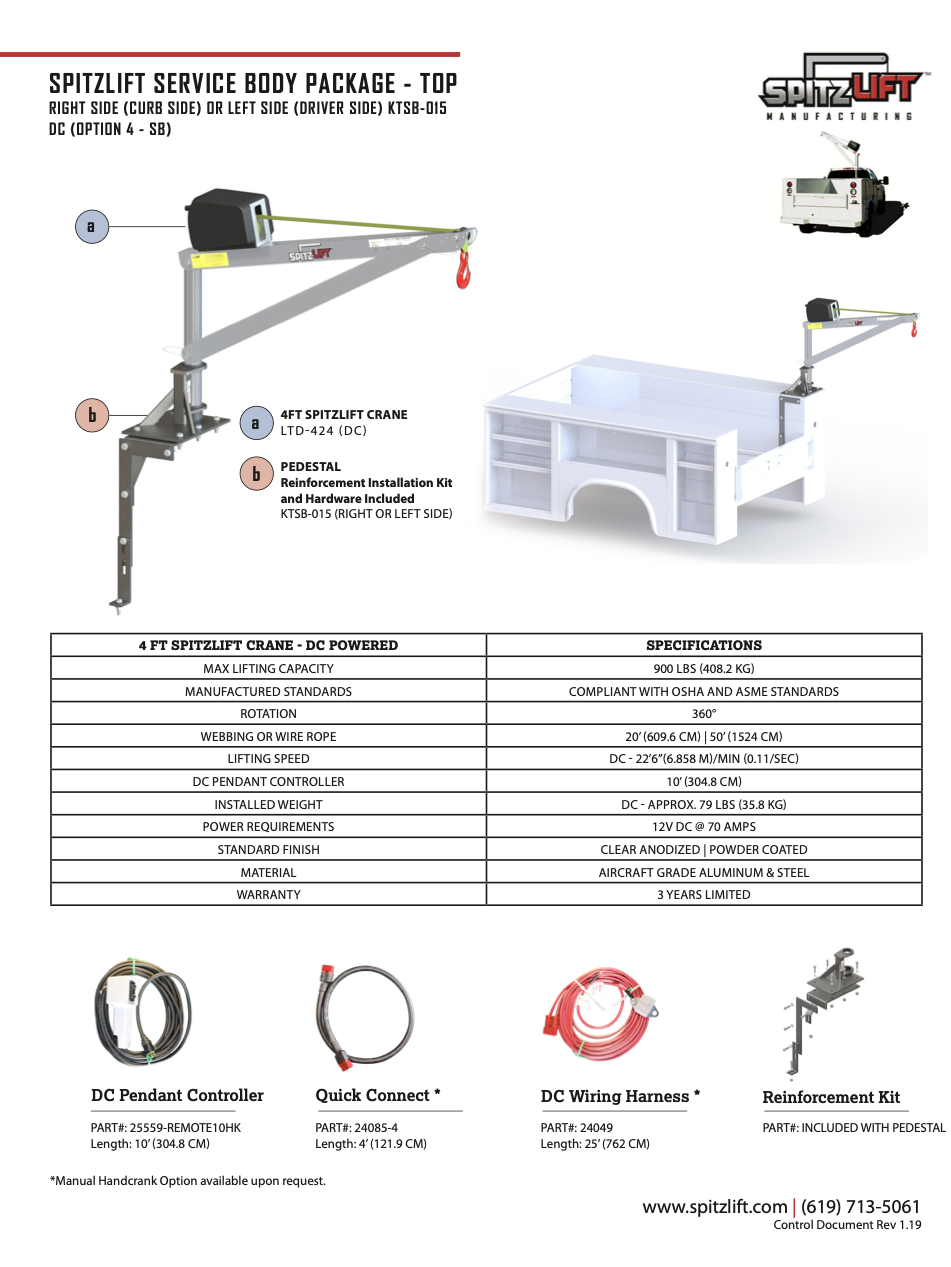

VIEW SPEC SHEET

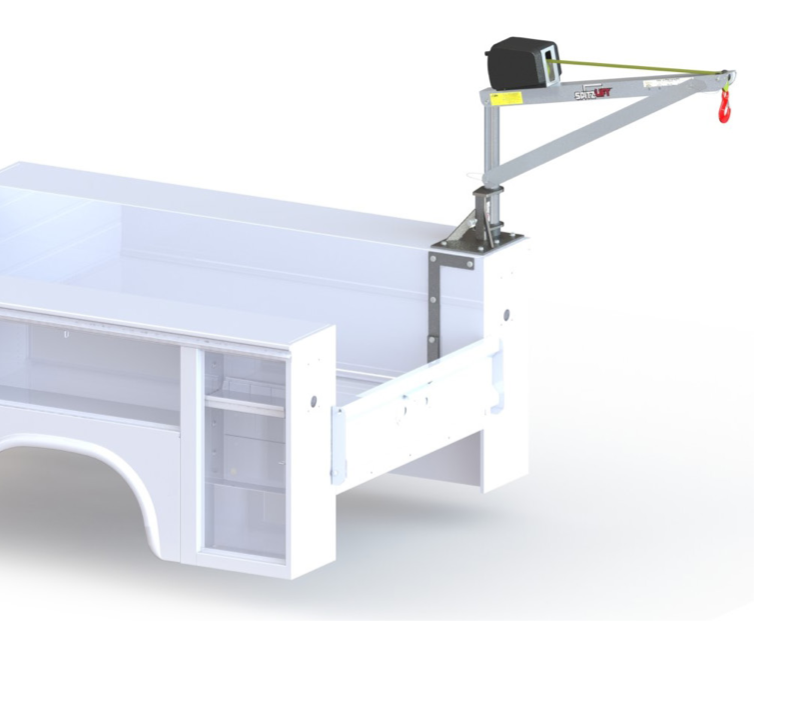

Top Mount –
DC Powered Lift

Product Description:

This mounting system is designed and engineered for service trucks with specifications that do not require flip tops or ladder racks.

Includes:

LTD-424- 12V DC Crane with Pendant, DC Connect & Wiring Harness. (Manual Crane available)

Pedestal KTSB-015 with Installation Reinforcement Kit.

Product Specifications:

Max Lifting Capacity: 900 lbs (408.2 kg)

Rotation: 360° Continuous

Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)

Installed Weight: Approx. 79 lbs (35.8 kg)

Materials: Aircraft Grade Aluminum & Steel



VIEW SPEC SHEET

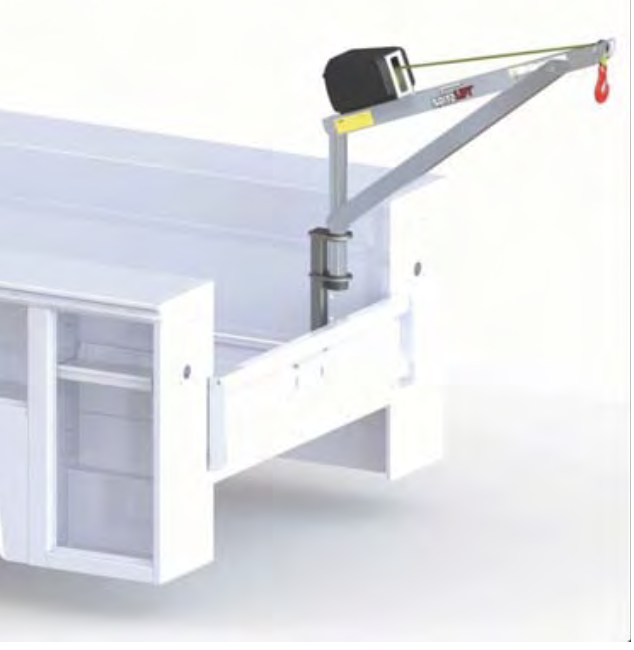

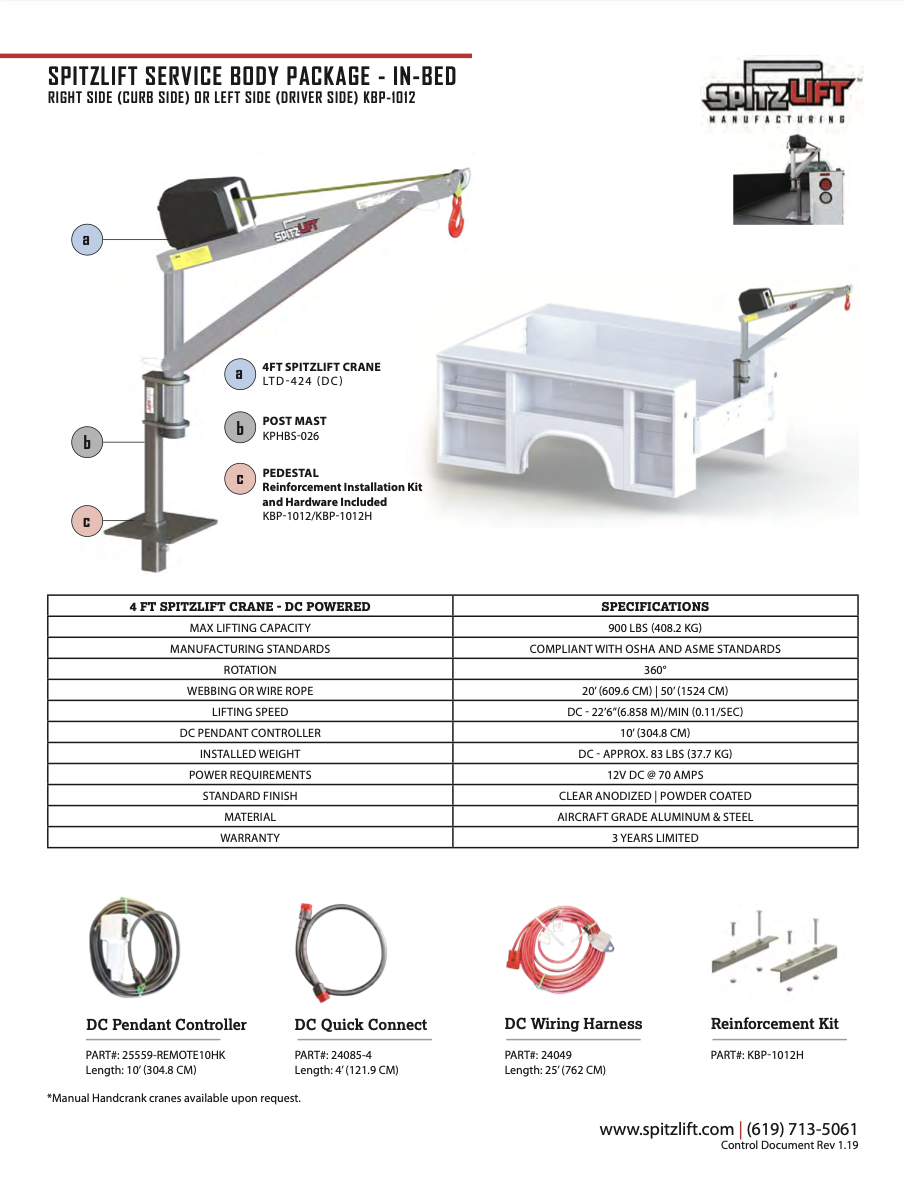

Bed Mount –
DC Powered Lift

Product Description:

This mounting system is designed and engineered for service trucks with specifications that include equipment that does not allow for the standard mount locations.

Inludes:

LTD-424- 12V DC Crane with Pendant, DC Connect & Wiring Harness (Manual Crane available)

Post Mast KPHBS-026 Pedestal KBP-1012 with Installation Reinforcement Kit KBP-1012H

Product Specifications:

Max Lifting Capacity: 900 lbs (408.2 kg)

Rotation: 360° Continuous

Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)

Installed Weight: Approx. 83 lbs (37.6 kg)

Materials: Aircraft Grade Aluminum & Steel



VIEW SPEC SHEET

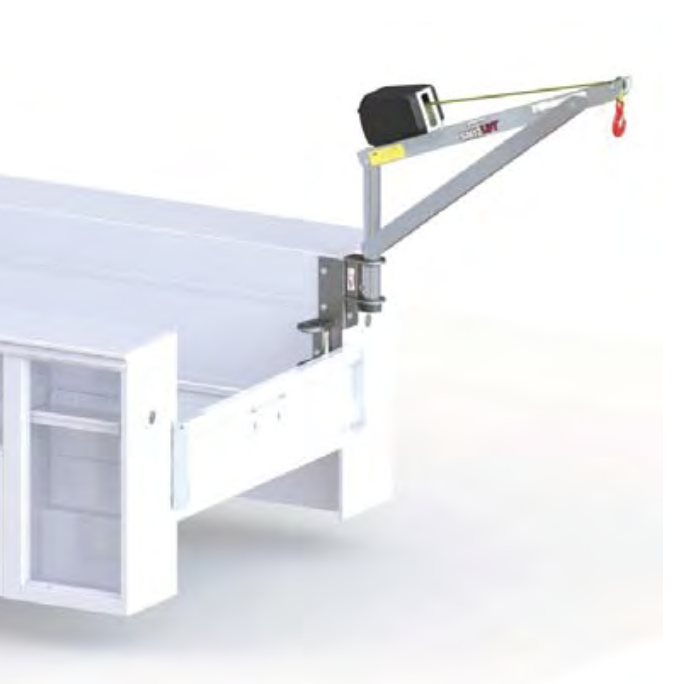

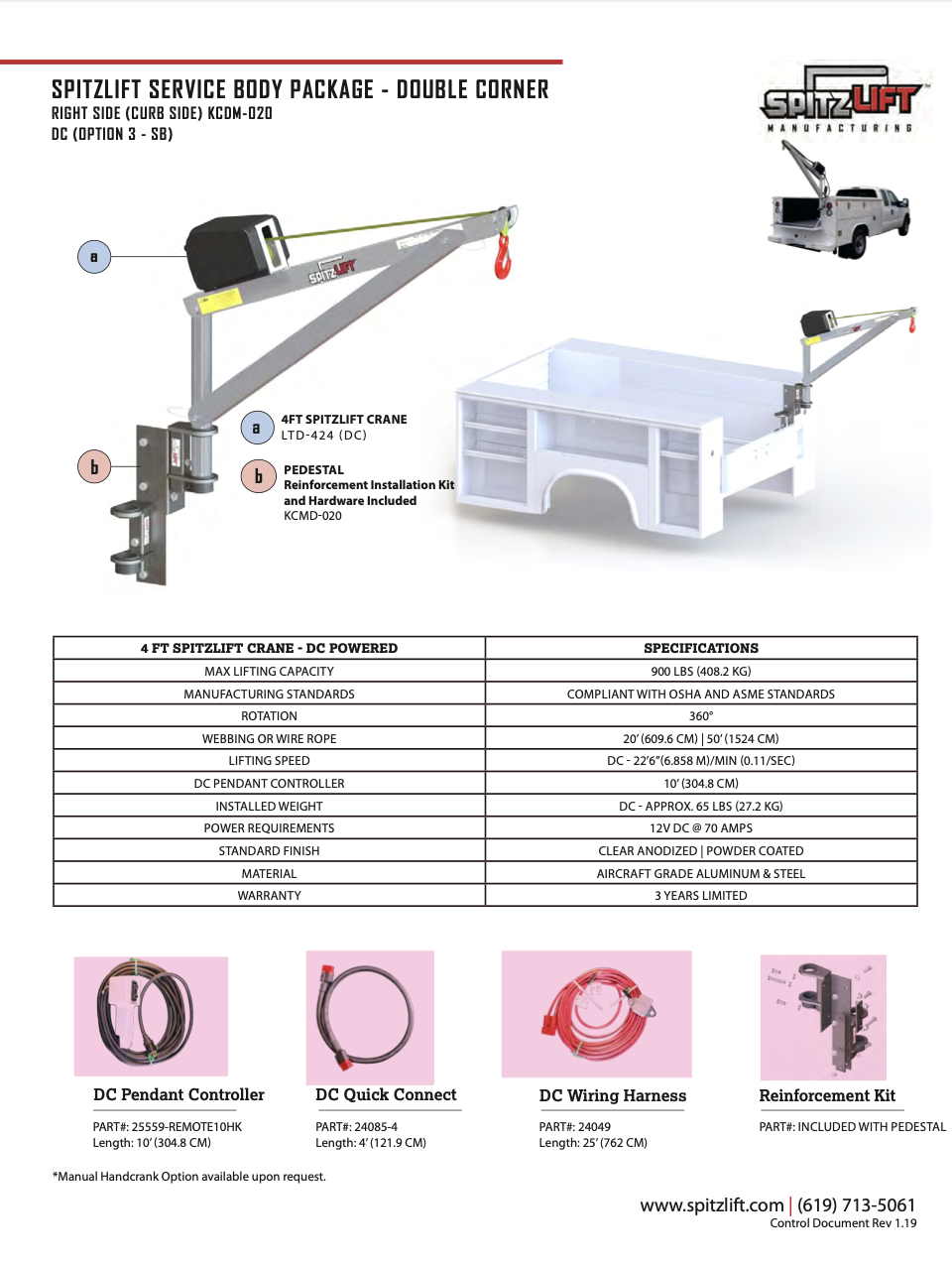

Double Corner Mount –
DC Powered Mount
Service Body Crane

Product Description

This mounting system is designed and engineered for service trucks in which field service technicians need a lower position for the crane. For example, needing to access parking garages. Both mount positions have full lifting capacity.

Includes:

LTD-424- 12V DC Crane with Pendant, DC Connect & Wiring Harness (Manual Crane available)

Pedestal KCMD-020 with Installation Reinforcement Kit

Product Specifications:

Max Lifting Capacity: 900 lbs (408.2 kg)

Rotation: 360° Continuous

Webbing or Wire Rope: 20 ft (609.6 cm)| 50 ft (1524cm)

Installed Weight: Approx. 70 lbs (31.7 kg)

Materials: Aircraft Grade Aluminum & Steel



VIEW SPEC SHEET

Call to speak with a SpitzLift application expert or get a quote.

SPITZLIFT FEATURES

Light Weight

SpitzLift cranes are made of aircraft grade aluminum and have an average weight of 40lbs.

Crane Capacity

SpitzLift cranes have a robust load capacity of up to 900 lbs. Custom projects can increase the load capacity to 1200 lbs.

Vehicle Weight Reduction

Fully installed, SpitzLift cranes are less than 100 lbs. payload to the vehicle.
+

Versatile

The modular design of Spitzlift cranes makes it possible to move from vehicle to vehicle, pedestal to pedestal, and application to application.

Increase Efficiency

SpitzLift cranes have a setup time of under 2 minutes.
Also allows for effective deployment of manpower.

Compact Storage

SpitzLift cranes fold down easily for compact storage.

Satisfaction Guaranteed

SAFETY AND QUALITY IS OUR UTMOST CONCERN

Leaders in our industry

Components are manufactured according to ISO compliance

All products made and assembled in the USA

Meets ASME, OSHA, DEFSTAN, CE, and AS standards

Every crane is tested and comes with a load test certificate

3-year standard warranty on most products
