Vans

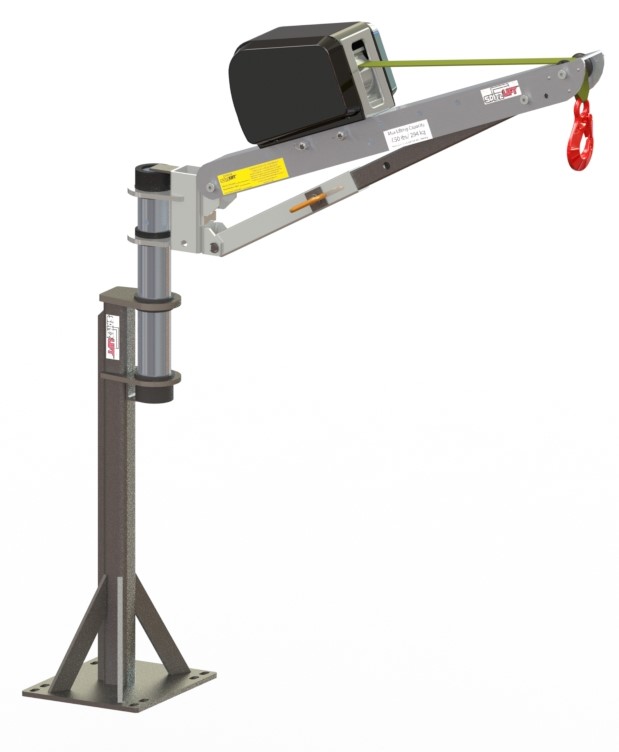

SpitzLift Aluminum Van Cranes are designed and engineered to be the ideal lifting solution for work vans.

ERGONOMIC: when not in use the crane stores neatly out of the way to maximize workflow

EFFICIENT: user-friendly design allows for simple set up to the operational and fold-down positions

VERSATILE: easily spec’ed in with shelving units or other accessory items

MAXIMIZE PAYLOAD: completely installed, weighs less than 100 lbs.

SAFE: 650 lb. load capacity, manufactured according to ASME & OSHA standards.

RELIABLE: Thousands of SpitzLifts are being used everyday

TRUSTWORTHY: 20 years of standing behind our product and know what it takes to get the job done.

Need more capacity? We also offer the SpitzLift Van Crane with 900 lbs. Capacity.

  • Weighs less than 100 lbs. fully installed
  • Can be removed for easy storage
  • (The crane by itself without the pedestal weighs approx. 40 lbs.)

Work Van Crane Product Selector

Option 1 - Ford Transit Rear Door

Option 1 – FT

12V DC Fold-Down Crane

Installs on either Left or Right Side

Includes: Pedestal with Installation Reinforcement Kit

Install Weight: Approx. 91 lbs.

Load Capacity: 650 lbs.

Option 1 - Ford Transit Side Door

Option 1 – FT/MH-SD

12V DC Fold-Down Crane

Includes: Pedestal with Installation Reinforcement Kit

Install Weight: Approx. 91 lbs.

Load Capacity: 650 lbs.

Option 2 - Ford Transit Side Door

Option 2 – FT/MH-SD

Includes: 12V DC Crane and Pedestal with Installation Reinforcement Kit

Install Weight: Approx. 87 lbs.

Load Capacity: 900 lbs.

Option 1 - Dodge Promaster Rear Door

12V DC Fold-Down Crane

Installs on either Left or Right Side

Includes: Pedestal with Installation Reinforcement Kit

Install Weight: Approx. 91 lbs.

Load Capacity: 650 lbs.

Option 1 - Dodge Promaster Side Door

12V DC Fold-Down Crane

Includes: Pedestal with Installation Reinforcement Kit

Install Weight: Approx. 91 lbs.

Load Capacity: 650 lbs.

Option 2 - Dodge Promaster Side Door

Includes: 12V DC Crane and Pedestal with Installation Reinforcement Kit

Install Weight: Approx. 91 lbs.

Load Capacity: 900 lbs.

Option 1 - Mercedes Sprinter Rear Door

12V DC Fold-Down Crane

Installs on either Left or Right Side

Includes: Pedestal with Installation Reinforcement Kit

Install Weight: Approx. 91 lbs.

Load Capacity: 650 lbs.

Option 1 - Mercedes Sprinter Side Door

12V DC Fold-Down Crane

Includes: Pedestal with Installation Reinforcement Kit

Install Weight: Approx. 91 lbs.

Load Capacity: 650 lbs.

Option 2 - Mercedes Sprinter Side Door

Includes: 12V DC Crane and Pedestal with Installation Reinforcement Kit

Install Weight: Approx. 87 lbs.

Load Capacity: 900 lbs.

Option 1 - Nissan NV Rear Door
12V DC Fold-Down Crane

Installs on either Left or Right Side

Includes: Pedestal, Installation Reinforcement Kit

Install Weight: Approx. 91 lbs.

Load Capacity: 650 lbs.

Option 1 - Nissan NV Side Door

Includes: 12V DC Crane and Pedestal, Installation Reinforcement Kit Not Available

Install Weight: Approx. 87 lbs.

Load Capacity: 900 lbs.

Option 1 - GM & Chevrolet Van Models Rear Door

12V DC Fold-Down Crane

Installs on either Left or Right Side

Includes: Pedestal, Installation Reinforcement Kit Not Available

Install Weight: Approx. 91 lbs.

Load Capacity: 650 lbs.

Option 2 - GM & Chevrolet Van Models Side Door

Includes: 12V DC Crane and Pedestal, Installation Reinforcement Kit Not Available

Install Weight: Approx. 87 lbs.

Load Capacity: 900 lbs.

Option 1 - Van Receiver Hitch

For All Van Models with Tow Packages

Designed to be used on Left or Right Side of Van

Includes: 12V DC Crane and Universal Receiver Hitch Pedestal

Install Weight: Approx. 91 lbs.

Load Capacity: 700 lbs.

find a lifting solution unique to your needs

Call a SpitzLift Applications Expert at (619) 713 – 5061 for a custom application.
